McLean Dovetail Slide

Dimensions & Price



Dovetail Slide CAD Files Now Available



Primary Dimensions

  • A- Width

  • B- Height

  • C- Base Length

  • D- Saddle Length

  • Travel- Base Length minus the Saddle Length

    *Base length is Saddle length plus Travel


Click To Enlarge. **Prices and Specifications Subject to Change**


Click To Enlarge. **Prices and Specifications Subject to Change**



Part Number

Part number is determined by the width, followed by a dash and then the travel times 10.

Model # 1.5-10 is 1.500" wide and has a stroke of 1.00 inches. Base Length is 3.00"

Model # 4-50 is 4.000" wide and has a stroke of 5.00 inches. Base Length is 9.00"



Mounting & Detail Dimensions

G- Base Height

H- Dovetail Width at top of Base

I- Saddle Height

J- Way Thickness of Base



Model Number Table

Click To Enlarge.



Additional Notes

  • Saddle and base contact on the outer way surfaces

  • Center area has clearance between saddle and base

  • Saddle and Base are made of Cast Iron

  • Gib and Gib Screw are mild steel

  • Wrench size for gib screw is 7/64"

  • Ways are milled finish, Dimensions A, B & G are ground finishes

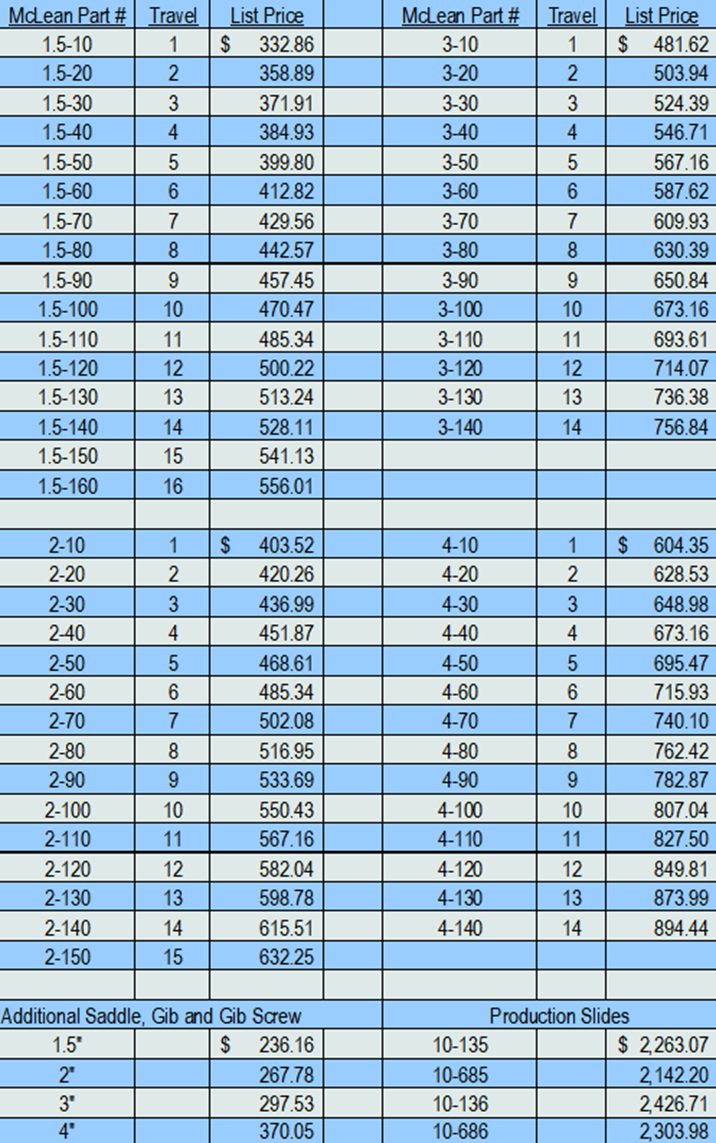

Price List



Click To Enlarge. **Prices and Specifications Subject to Change**
