McLean Model 850

Production & Second Operation Lathe

In the spectrum of lathes, from hand operated to CNC, we feel we’ve developed an affordable compromise.



Versatility & Efficiency

Taking a lathe with a 9” swing, we’ve added air powered slides with a controller to operate the movement of the collet, spindle, and each slide. This allows an unskilled operator to make thousands of parts with greater speed and accuracy than with comparably

priced lathes. With the versatility of the McLean System, you have an effective alternative to higher-priced equipment.



3 axis production lathe

This machine is well- suited for dedicated applications or can be changed over to run multiple parts.

The Model 850 can be placed alongside of a CNC lathe, screw machine or molding machine to allow the operator to perform a second operation. The Model 850 is standard with a Front Slide, Rear Slide, and a Tail Slide. Other slides, including our heavy-duty slides, are also available. McLean slides are air-powered with hydraulically controlled feed.

The controller features a Touch Screen and PLC. The controller operates the sequencing of the slides, spindle RPM & direction, and duration of operation. It provides program storage for six different parts and includes Total Cycle Counter.



STANDARD SLIDES



#10-135 – FRONT CROSS SLIDE

For facing, grooving, chamfering, plunge with form tools, etc. 50mm (2”) total stroke, up to 25mm (1”) hydraulically controlled feed. The remaining stroke is rapid, also rapid retract. 152 lb. push at 100 PSI.

#10-136 – TAIL SLIDE

For turning, boring, drilling chamfering, etc. 75mm (3”) total stroke, up to 25mm (1”) hydraulically controlled feed is standard. The remaining stroke is rapid, also rapid retract. 152 lb push at 100 PSI.

#10-138 – REAR CROSS SLIDE

For facing, grooving, chamfering, plunge with form tool, cut-off, etc. 50mm (2”) total stroke, up to 25mm (1”) hydraulically controlled. The remaining stroke is rapid, also rapid retract. 152 lb push at 100 PSI.

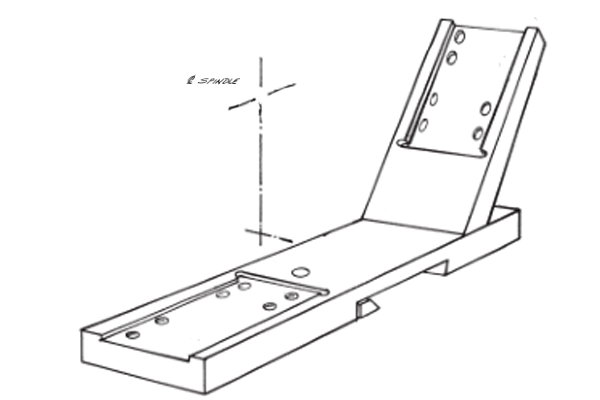

SUBPLATES



#10-298 – TAIL SUBPLATE

Use with Standard Tail Slide #10-136.

#10-298 – TAIL SUBPLATE

Use with Standard Tail Slide #10-136.




TOOL HOLDERS



#10-274-M – FRONT SLIDE TOOL HOLDER

Holds 3/8” and 1/2” square shank tool bits. Holds tool right side up.

#10-275-M – REAR SLIDE TOOL HOLDER

Holds 3/8” and 1/2” square shank tool bits. Holds tool upside down.

#10-276- – TAIL SLIDE TOOL HOLDER ASSEMBLY

Holds 3/8” and 1/2” square shank tool bits. Features a 1” diameter hole that receives a 5/8” I.D. eccentric bushing which, when rotated, raises or lowers the tool or round shank turret tooling. Includes bushing.

#10-272 – VERTICAL ADJUSTABLE TOOL HOLDER

For front or rear slides. Puts your tool exactly on center. Holds 3/8” square shank tool bits.




OPTIONAL Collet Package

  • #12-353 5C COLLET SET ENGLISH- 1/16” to 1” by 1/16ths 16 Collets

  • #12-354 5C COLLET SET METRIC- 3mm to 25mm by 1mm 23 Collets



GENERAL LATHE SPECIFICATIONS

  • Spindle Speeds: 60-2100 RPM Variable Std. – 3200 RPM Optional

  • Spindle Construction: Single Piece with Precision Ball Bearings

  • Spindle Capacity: 26.9 mm (1-1/16”) Diameter Thru-Spindle with 5C Collet

  • Spindle Drive Motor: 1 1/2 hp

  • Brake: Electronic

  • Dovetail Width: 85.73mm (3-3/8”)

  • Spindle Centerline to Dovetail: 114.30mm (4-1/2”)

  • Length of Bed from Face of Spindle: 330mm (13”)

  • Swing Over Bed: 228mm (9”)

  • Maximum Part Diameter: 152mm (6”)

  • Overall Height: 1,460mm (57-1/2”)

  • Overall Width: 889mm (35”)

  • Overall Length: 1,009mm (39-3/4”)

  • Power Requirements: 220 VAC – 50/60 Hz Single Phase

  • Air Requirements: 5.5 – 7 BAR (80 – 100 PSI)
